Coachmen RV Catalina Summit Series 7 Travel Trailer RVs For Sale
-

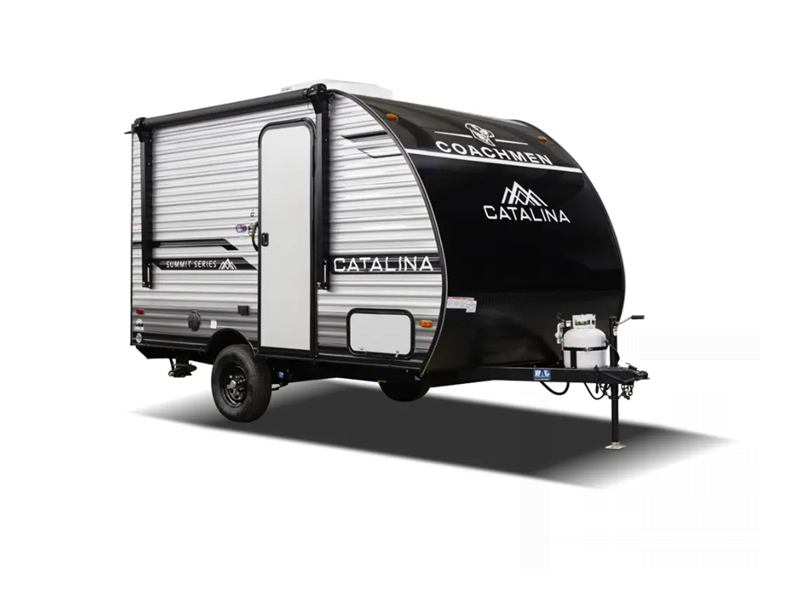

Catalina Summit Series 7 184FQS
Coachmen Catalina Summit Series 7 travel trailer 184FQS highlights: Pass-Through ... more about Catalina Summit Series 7 184FQS
Have a question about this floorplan? Contact Us
Specifications
Sleeps 4 Slides 1 Length 23 ft 1 in Ext Width 7 ft 6 in Ext Height 10 ft 1 in Hitch Weight 396 lbs GVWR 4900 lbs Dry Weight 3680 lbs Cargo Capacity 1220 lbs Fresh Water Capacity 44 gals Grey Water Capacity 30 gals Black Water Capacity 30 gals Furnace BTU 19000 btu Available Beds Queen Refrigerator Type 12 Volt Refrigerator Size 10 cu ft Cooktop Burners 2 Shower Size 32" x 32" Number of Awnings 1 LP Tank Capacity 20 lbs Water Heater Capacity 6 gal Water Heater Type Gas/Electric DSI AC BTU 13500 btu Awning Info 15' Power with Multicolored LED Light Strip Axle Count 1 Number of LP Tanks 1 Shower Type Radius Electrical Service 30 amp Similar Floorplans
Take a Virtual TourCatalina Summit Series 7 Features:
Standard Features
Exterior
- Electric Awning w/Multicolor LED Strip & Remote
- Black Tank Flush
- Battery Disconnect Switch
- Siphon 360 Holding Tank Roof Vent
- Heavy Duty Standard Tongue Jack
- (1)20lb. LP Tanks
- LP Quick Connect (w/CK)
- Flush Mount Baggage Doors w/Radius Corners
- Diamond Plate Rock Guard
- Stabilizer Jacks
- G20 Tinted Privacy Windows
- Premium JBL Exterior Speakers(s)
- Friction Hinge Door
- Radius Cornered Fiberglass Entry Door
- Exterior 110V G.F.C.I Protected Receptacle
- Exterior RG-6 Coax Cabling and Satellite Prep
- Rain Gutters with Drip Spouts
- SolidStep Entrance Steps IPO Flip-Down Steps (Main Entrance Only) (n/a 164BHX)
- Rear View Camera Prep
- Bottle Openers (Exterior Camp Kitchens)
- Pets - "Leash Link" Quick Hookup D-Ring
- Universal Solar Prep w/Roof & Chg. Controller Connections & Wiring
Interior

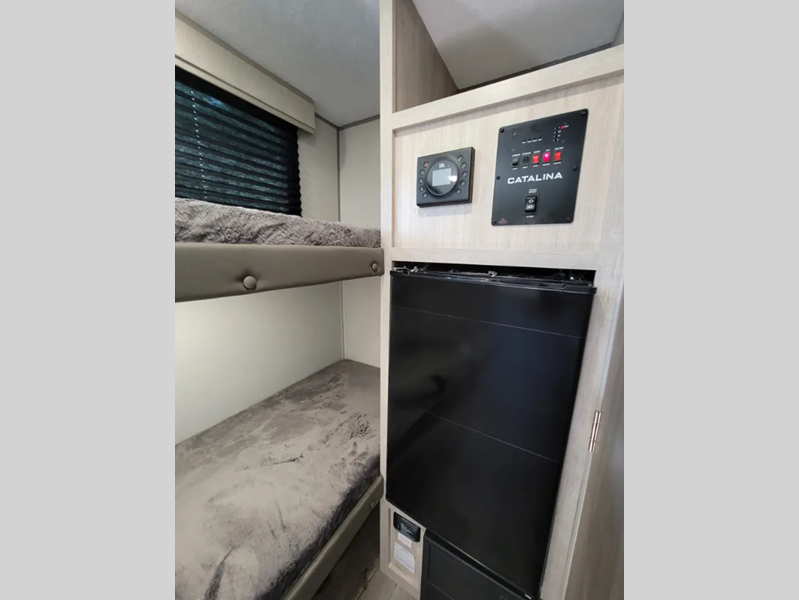

- One Control Smart RV Tech Monitor Panel (uses LCI OneControl - App)
- Premium Audio JBL Aura Cube Multi-Zone Function Media Center
- Premium JBL Interior Speaker(s)

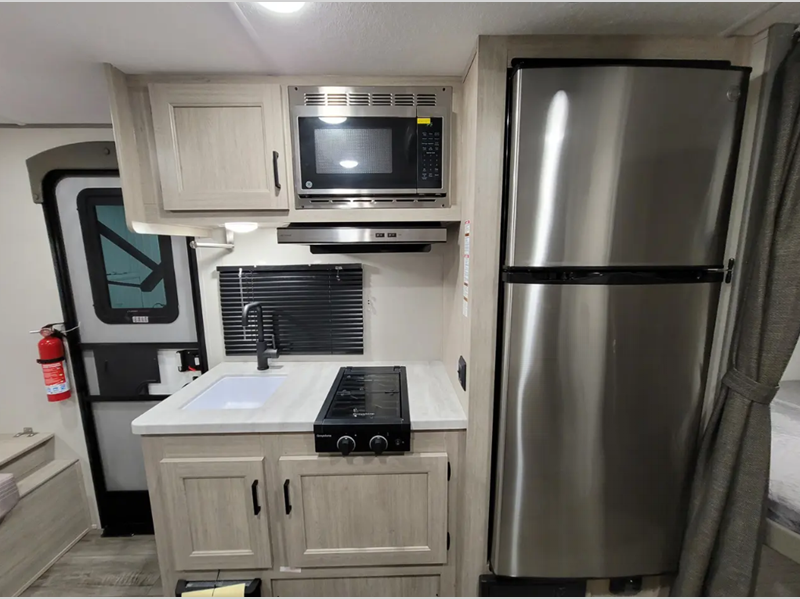

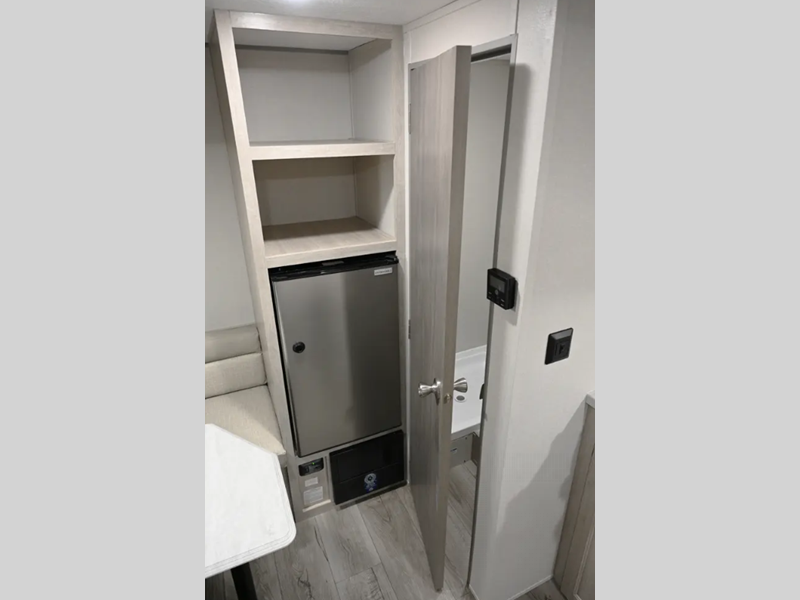

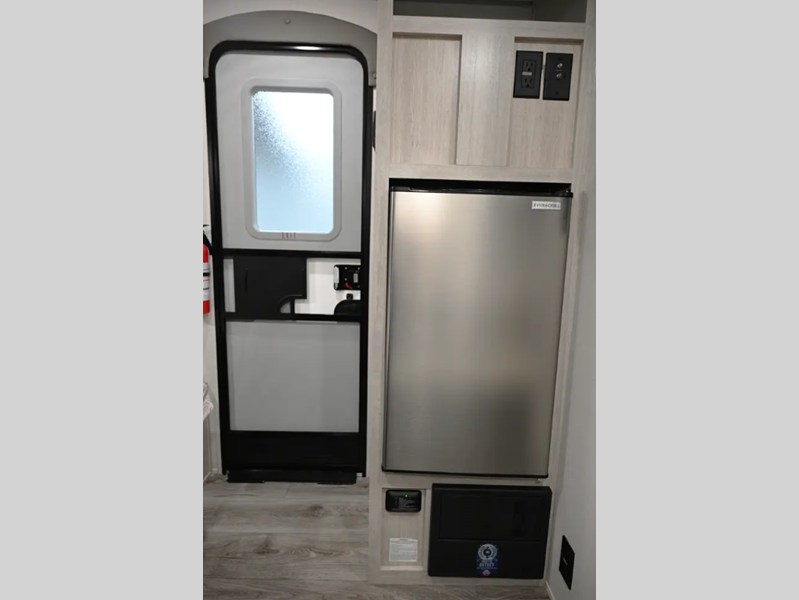

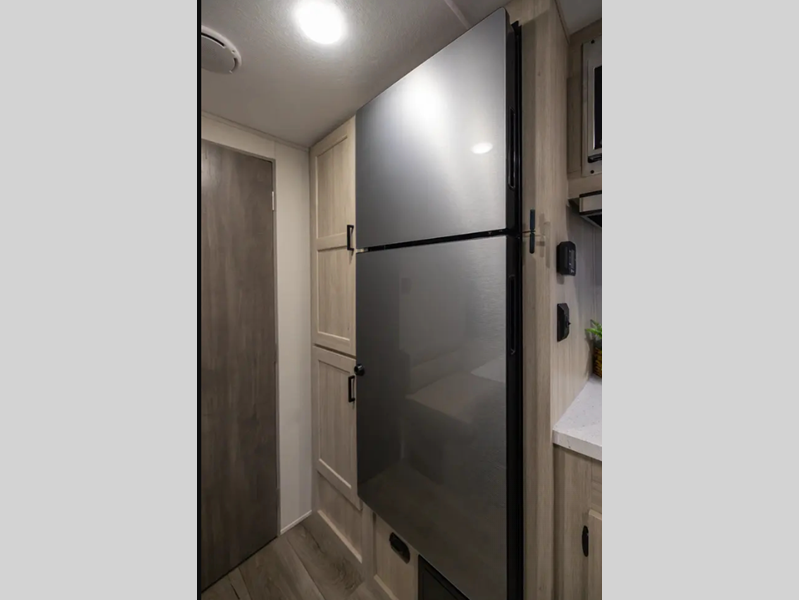

- 10 Cu. Ft. 12V Refrigerator (n/a 164BHX: has 3.3 cu. ft.)
- Seamless Thermofoil Countertops Throughout

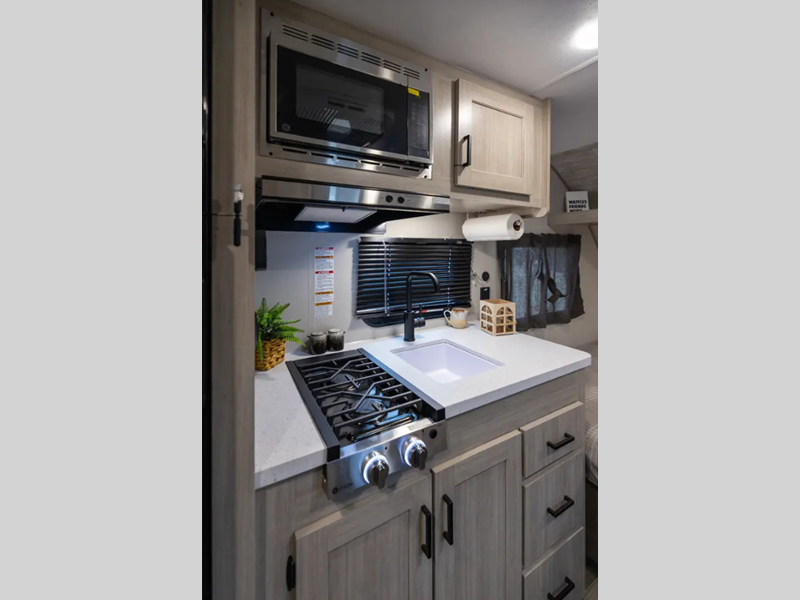

- Under-mount Farm Style Sink
- High Rise Bullet Style Kitchen Faucet

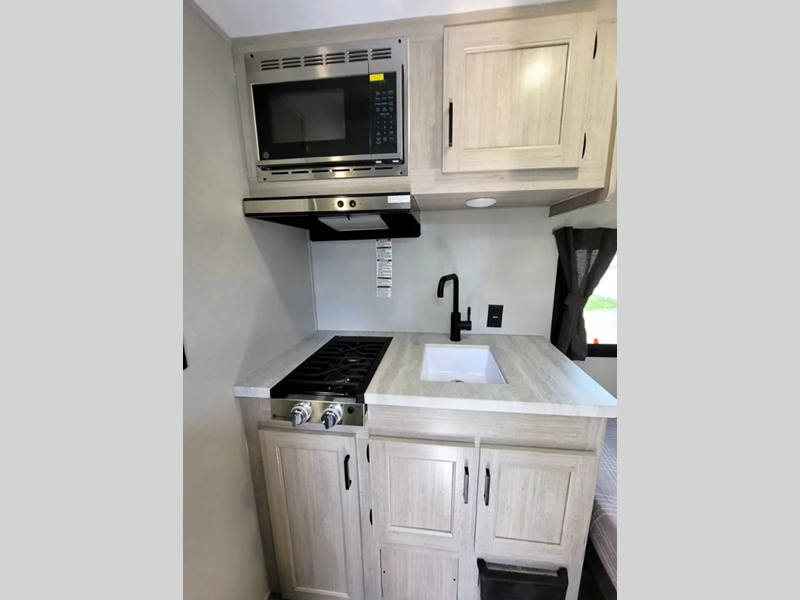

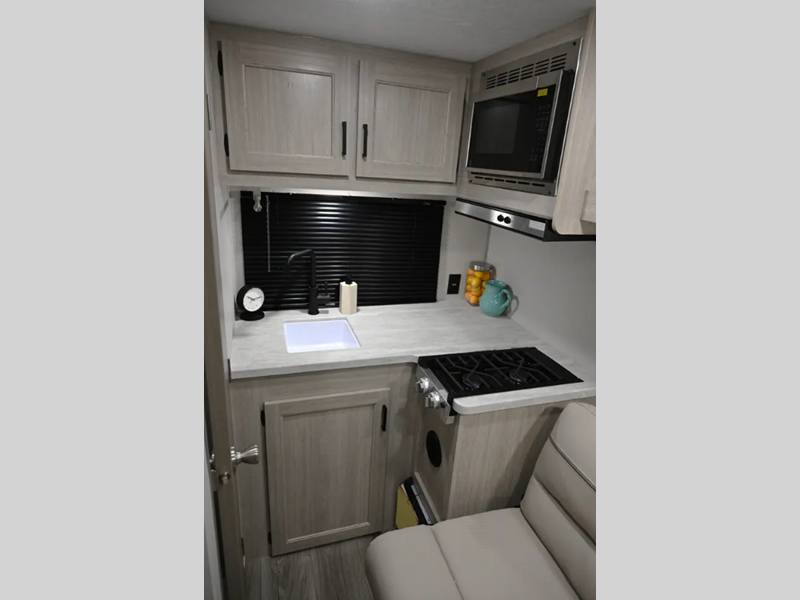

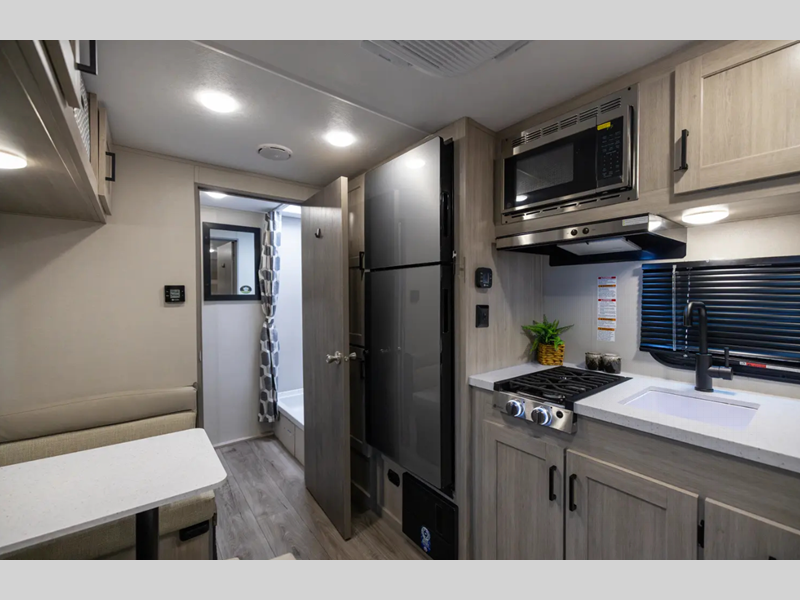

- 2 Burner High Output Cooktop w/Flush Glass Top
- Slim Line Range Hood
- SST Microwave W/Glass Turn Table
- Congoleum Woodplank Linoleum Flooring
- 4000 Lumen LED Interior Lighting

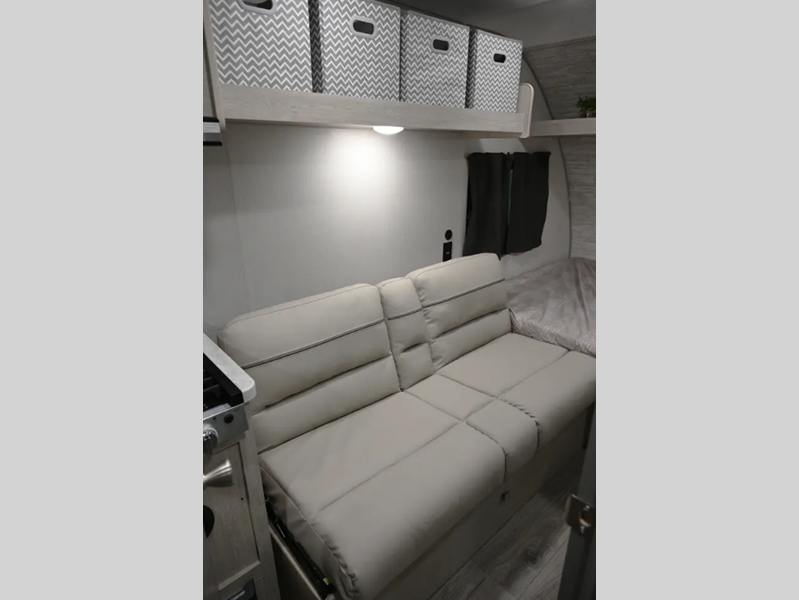

- Jiffy Sofa w/Flip Down Cup Holder/Arm Rest
- Easy Access Kickboard Storage Underneath Jiffy Sofa (Per Floorplan)

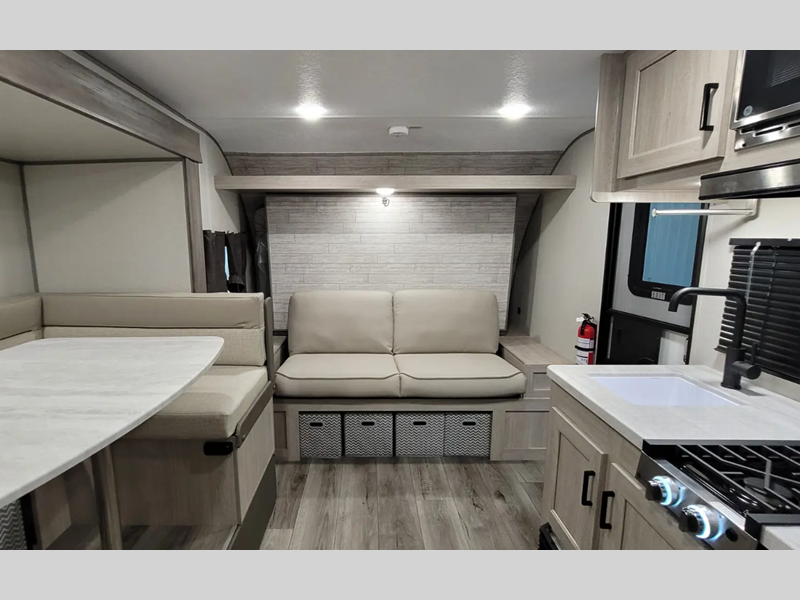

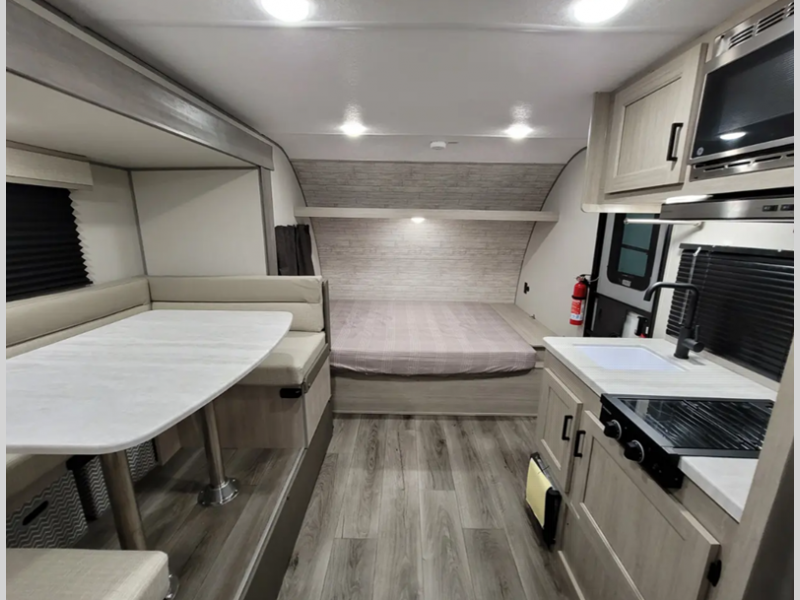

- Murphy Bed Sofa (Per floorplan)
- Hard Valance Window Treatments

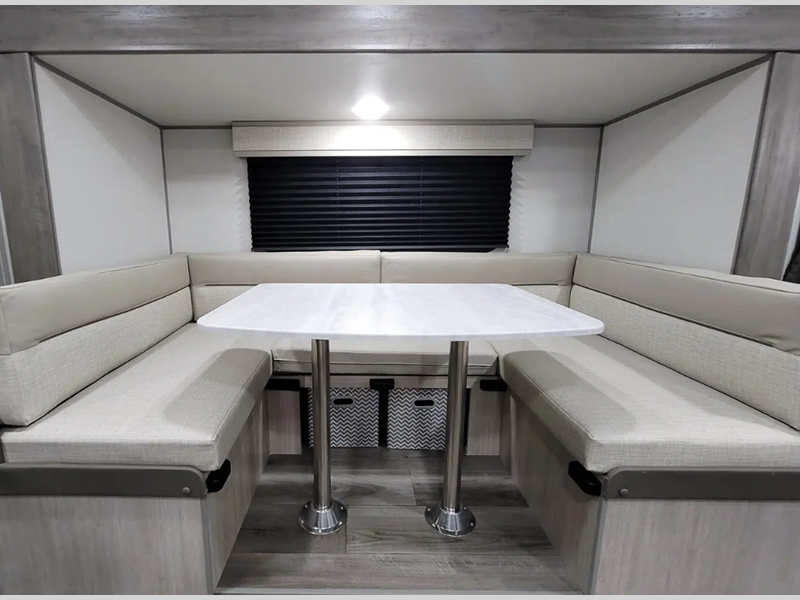

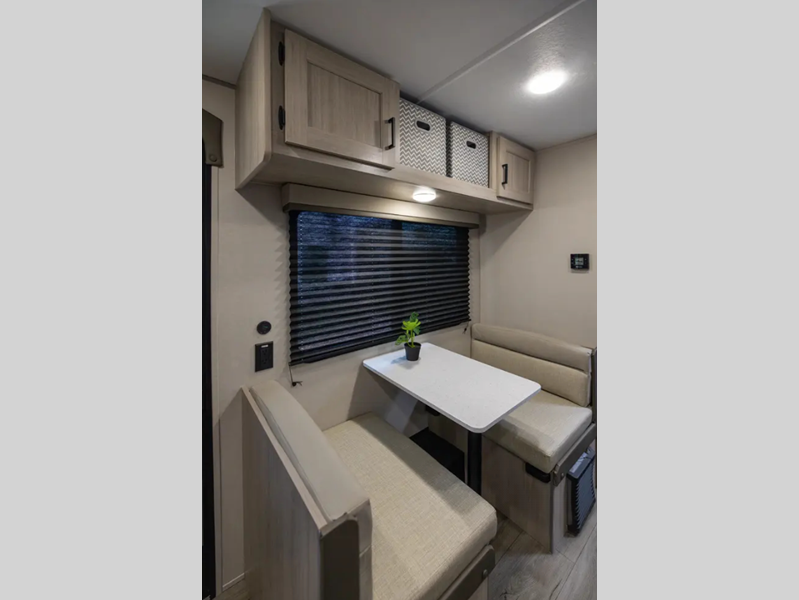

- Pedestal Thermofoil Dinette Table (184BHS)
- Portable Dinette Table (N/A 164BHX, 184BHS)
- Under Bench Dinette Storage (Per Floorplan)
- 12V 14" Bathroom Power Vent Fan

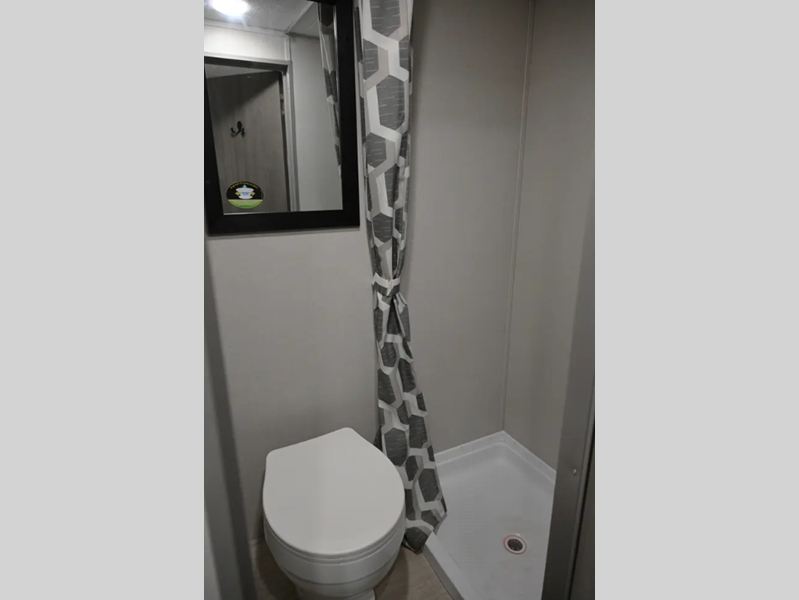

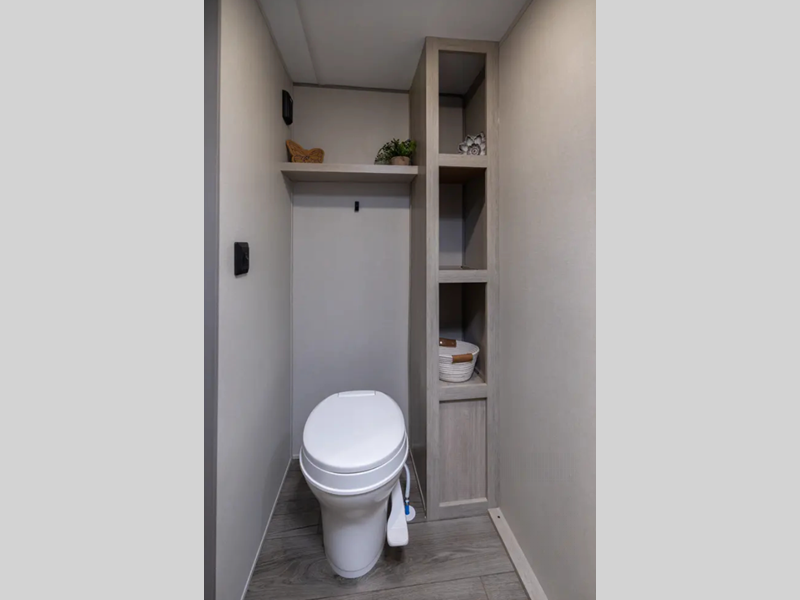

- Marine Toilet with Foot Flush

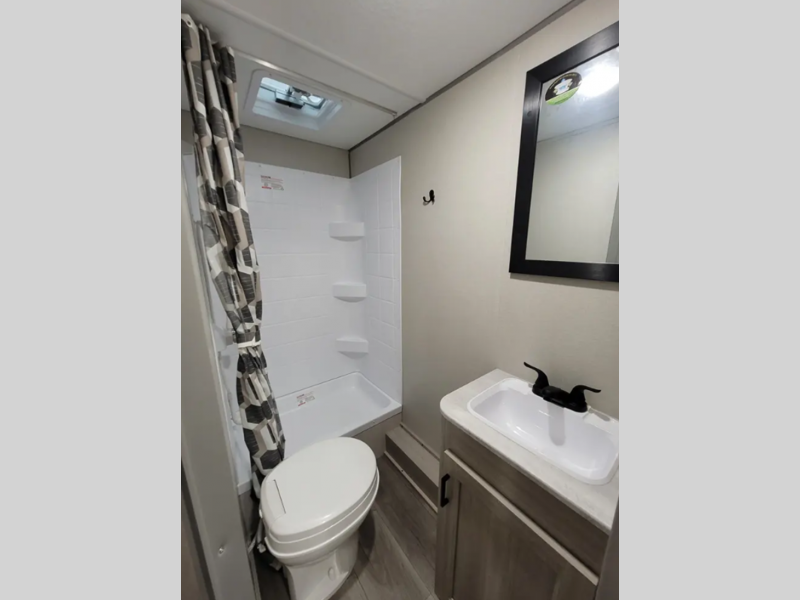

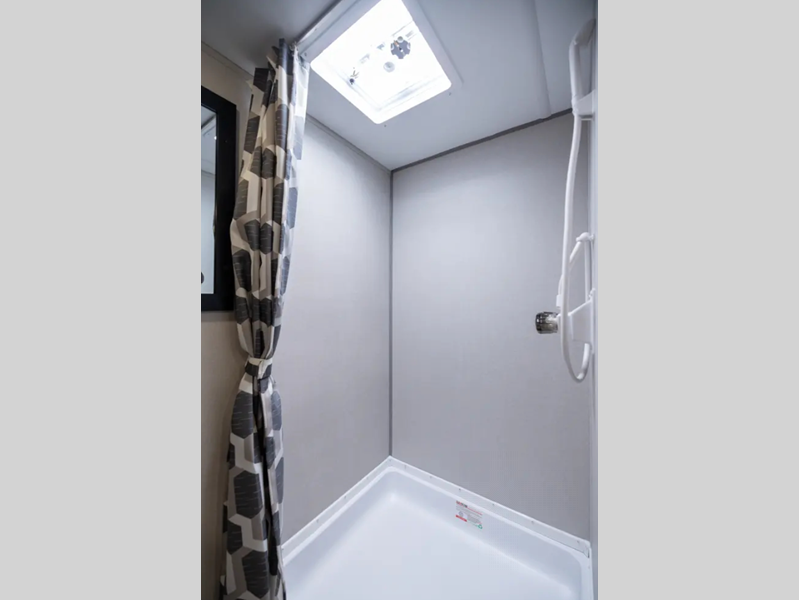

- ABS Tub/Shower Surround w/Shelves (n/a 164BHX)
- Mirror
- Bedroom Surface Mounts USB Ports (Each Night Stand)
- Kitchen USB's & Outlets
- USB Surface Mounts Near Bunk Beds

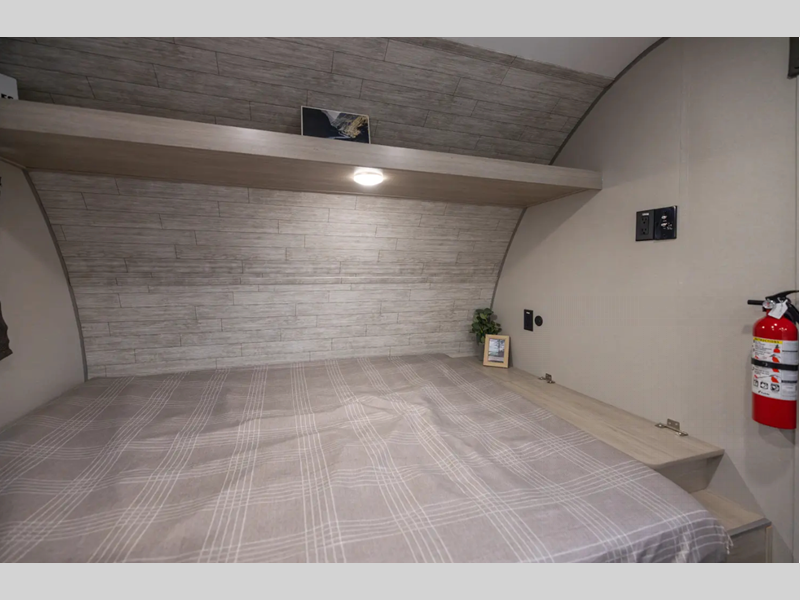

- Master Bedroom Overhead Shelf
- Designer Fitted Master Bed Sheet
- Teddy Bear Bunk Mats
- Full Lino in Slide-Outs and Bedrooms (Carpetless)
Construction & Equipment
- Cambered Structural Steel I-Beam Frame
- New Road Defense Chassis Powder Coating
- Full Length Frame Outriggers
- 5/8" Tongue & Groove Plywood Floor Decking
- 2"x2" Floor Joists on Approximately 12" Centers
- 4" Floor To Frame Steel Lag Bolts
- Darco Subfloor Protective Wrap/Enclosure
- Seamless Alpha Roof Membrane with Lifetime Warranty
- Cross-Braced Engineered Roof Trusses w/5" Crown
- 3/8" Fully Decked Walk-On Roof
- Screwed Cabinet Construction w/Pocket Bored Lumber Core Stiles
- Hardwood Cabinet Doors
- 5/8" Plywood Under Bed & Dinette Base
- 78" Interior Height (6'6")
- Norco Cable Slide Out
- R-7 Fiberglass Insulation Throughout
- 6 Gal. Gas/Electric DSI Water Heater
- Water Heater By-Pass Winterization Kit
- 12V Demand Water Pump
- Premium Exterior Graphics Package
- Platinum .024" Aluminum Exterior w/.030 Skirt Metal
- Smooth HD Aluminum Radius Front
- Dexter EZ Lube Axles w/Leaf Spring Suspension
- Self Adjusting Brakes
- Roto-Cast Holding Tanks
- Bumper w/ Drain Hose Carrier and End Caps
- 19,000 BTU Direct Furnace w/Wall Thermostat
- 13,500 BTU Central A/C
- 30 Amp Elect. Service w/ 100v 45-Amp Power Convertor.
- Rugged Pro Black Steel Wheels
- Magnetic Hands Free Baggage Door Latches
Safety Features
- Smoke Alarm
- LP/CO Gas Detector
- Fire Extinguisher
- Fire Escape Windows
- Entrance Door Window
- Dead-Bolt Lock on Entry Door
- SafeRide RV Motor Club (1 YR Roadside Assistance)
Options
- 7 Cu. Ft. LP Gas/Electric RV Refrigerator w/Reversible Door Inserts
- Peak Performance Solar Package - 30A Controller w/ 200W Panel
- Steel Fold-Down Steps IPO SolidStep Entrance Steps (Standard 164BHX)

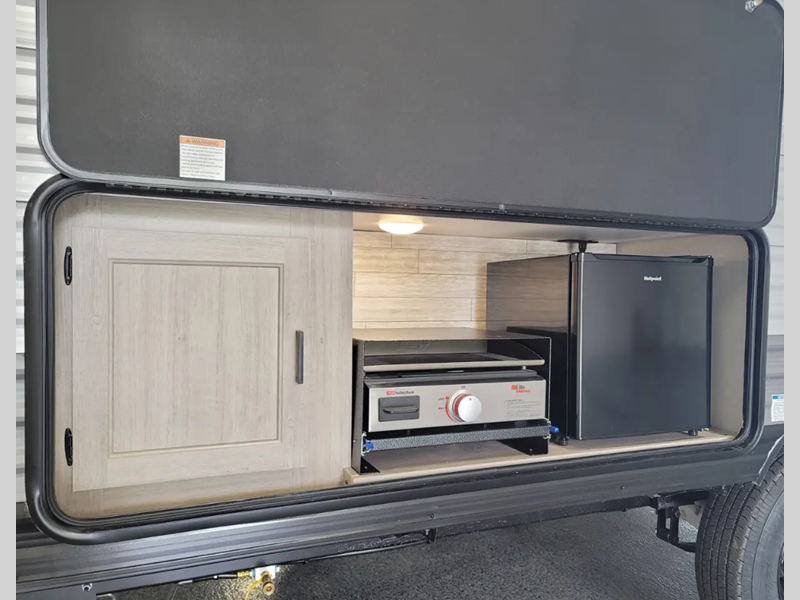

- Exterior Camp Kitchen (184BHS)
- Spare Tire w/ Tire Carrier (N/A 164BH/164RB)
- CSA Standards
See us for a complete list of features and available options!
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
Due to the current environment, our features and options are subject to change due to material availability.
